This is the perfect system for someone who wishes to use a 275 gallon IBC water tote or utilizes an enclosed trailer!! These Control Panel systems are designed to be hung on the inside wall of your trailer or on the exterior rack of an IBC water tote. Or even someone who has an electric start pressure washer and doesn't need another battery box and Deep cycle battery. The control panel can be wired to an existing battery and you're ready to spray.
We start with the same aluminum pump panel as our Gen 2 systems. It is wired with the same 10 gauge wiring, uses the same marine grade, 50 amp battery switch. It uses all the same stainless steel hardware throughout, and it still comes with the soft wash wand!!
The pump is the tried and true, Everflo 5.5 gallon per minute, 60 psi 12 volt pump. Ask anybody who has used a 12 volt soft wash system, they will probably have used this very pump at one time or another. To make using the machine extremely easy, we use ordinary garden hose connectors on the output side of the pump and on the input side of the soft wash wand. This allows the user to screw a standard garden hose onto the pump and into the wand to dispense solution. NO HOSE REEL REQUIRED!!!
The proportioner/manifold features the same anodized aluminum mixing block as all of our other proportioners, and uses the 1/2" Precision Flow metering valves that provide a budget friendly price but also good quality.

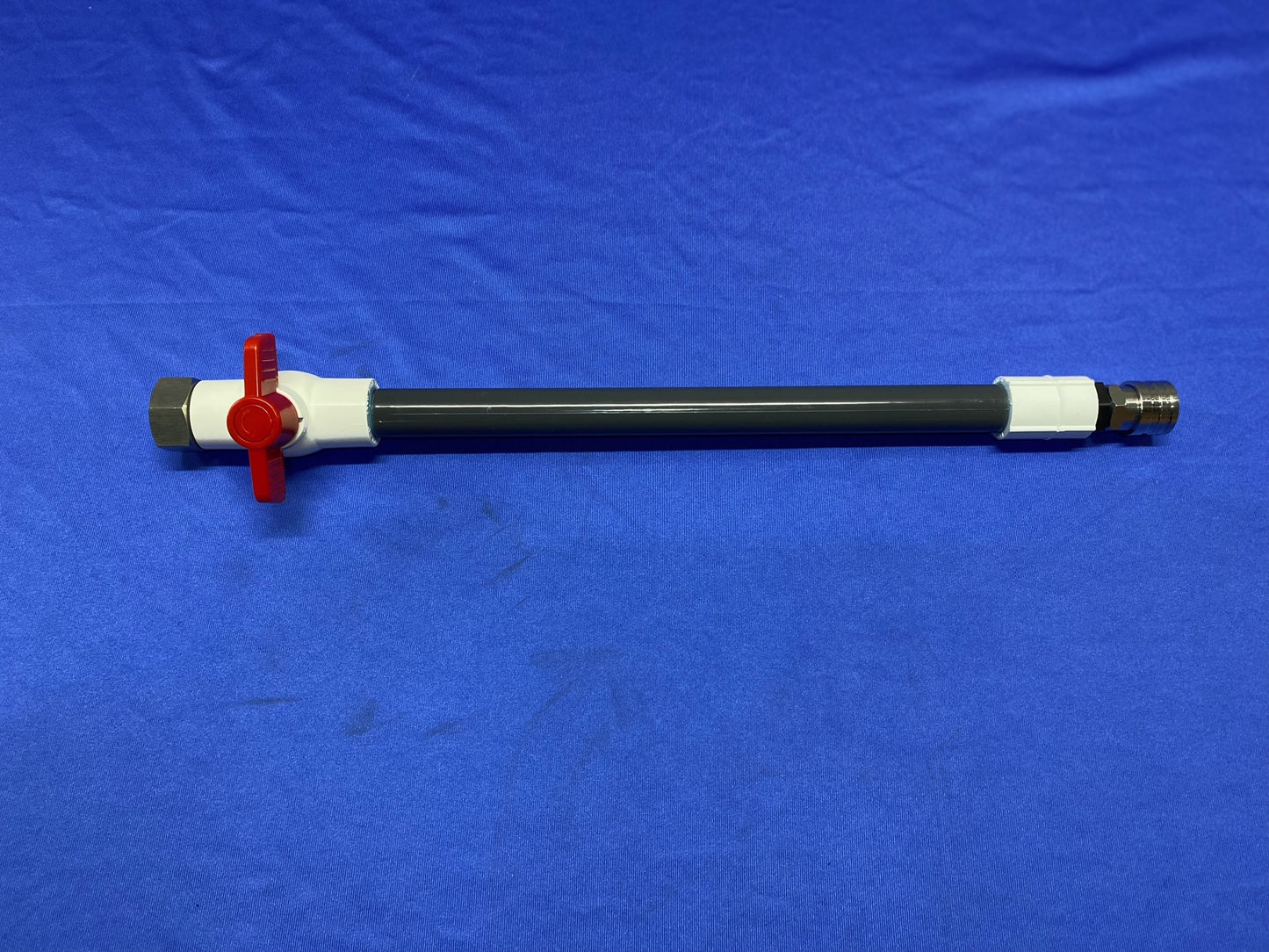

Even our Control Panel systems com with drop sticks for water, bleach (SH, Sodium Hypochlorite) and soap/surfactant.
***Note: Drop sticks consist of 10 feet of braided tubing for both the water and SH/bleach, and 100 inches of braided tubing for the soap/surfactant.***
***Some minor components may change due to product availability.***
